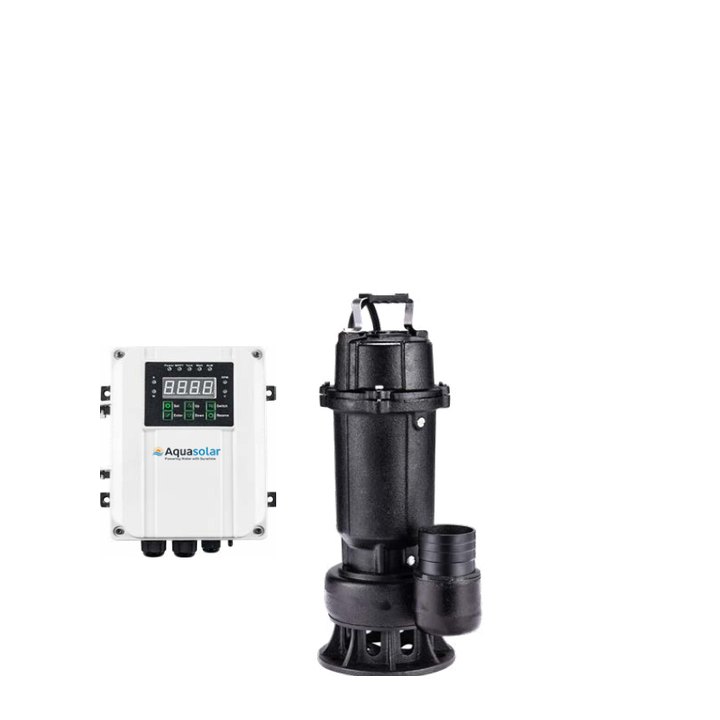

DC Solar Submersible Pump (High-Flow)
14 mMax head
56 m³/hMax flow
1100–2200 WPower range
2 yrWarranty
✓ 2-yr Warranty✓ 70+ countries✓ 15+ years experience✓ CE · RoHS · ISO
Engineering note. Maximum head and maximum flow are curve endpoints, not one simultaneous duty point. Final selection is verified against your total head, required flow and solar resource.
- Permanent-magnet brushless motor + intelligent MPPT (auto start/stop, soft-start)
- Controller LED display: voltage / current / power / speed (RPM) / error code
- Oil cooling
- Full protection: over/under-voltage, overload, over-current, dry-run, reverse, over-temp
- Runs directly off PV modules — no batteries required
- Cast-iron / SUS304 wetted parts (SUS316 optional for corrosive water)
Specifications
| # | Model | Voltage (V) | Power (W) | Current (A) | Max flow (m³/h) | Max head (m) | Outlet | Ø (mm) | Length (mm) | Weight (kg) | Recommended cable (mm²) | Recommended PV |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | PSG40-10-144-1100 | 144 | 1100 | 7.6 | 40 | 10 | 3" | — | 760 | 20.6 | 2.5 | 6 × 300 Wp |
| 2 | PSG48-10-192-1500 | 192 | 1500 | 7.8 | 48 | 10 | 4" | — | 800 | 23 | 2.5 | 8 × 300 Wp |
| 3 | PSG45-12-192-1500 | 192 | 1500 | 7.8 | 45 | 12 | 3" | — | 800 | 23 | 2.5 | 8 × 300 Wp |
| 4 | PSG56-14-280-2200 | 280 | 2200 | 7.9 | 56 | 14 | 4" | — | 870 | 27.2 | 2.5 | 10 × 300 Wp |
Motor & Drive
| Motor | Permanent-magnet DC brushless (PMSM) |
| Drive | Sensorless FOC, pure sine-wave output |
| MPPT tracking | >99% |
| Insulation class | F (155 °C) |
| Duty | S1 (continuous) |
| Ingress protection | IP68 (submersible motor) / IP66 |
| Max immersion | 20 m |
| Warranty | 2 years |
Controller & Protections
| Controller | Sensorless FOC sine-wave vector drive + MPPT (>99%), LED display |
| Display | Voltage, Current, Power, Speed (RPM), Speed adjustment, Error code |
| Controller size | 360 × 260 × 140 mm |
Protections
OverloadOver-currentUnder-loadUnder-voltageReverse-connectionOver-temperature (thermal)Dry-run / low-waterSoft-start
Remote monitoring (optional): Optional 4G/GSM or Wi-Fi monitoring module — remote flow, water level, energy and fault alerts with OTA updates (add-on; the standard controller uses a local LED display).
Operating conditions
| Water temperature | 0–40 °C |
| Sand content | ≤ 0.05 % (≤ 500 g/m³) |
| pH range | 5–9 |
| Ambient temperature | -15 to 70 °C |
| Min. borehole | mm |
Materials
- Standard — Cast-iron (HT200) body + SUS304 impeller + SUS304 shaft (High-flow, low-head open-well transfer)
- Corrosion (option) — SUS304 / bronze wetted parts
Premium components
- 100% copper motor windings
- Class F (155 °C) insulation system
- NSK-grade sealed ball bearings
- SUS304 shaft & impellers (SUS316 optional)
- Silicon-carbide (SiC) mechanical seal
- Oil-cooled motor
- PMSM + sensorless FOC sine-wave controller, MPPT >99%
Recommended cable
PV-to-controller & motor cable 2.5 mm² by model (copper, sized for a ~50 m run; step up one size per additional ~50 m of drop).
Per-model cable cross-section is listed in the specification table above (mm² column).
Certifications
RoHSCBTUVSGSISO 9001ISO 14001
Standards
IEC 62253 (PV pumping systems)IEC 60034 (rotating machines)IEC 60529 (enclosure / IP)
